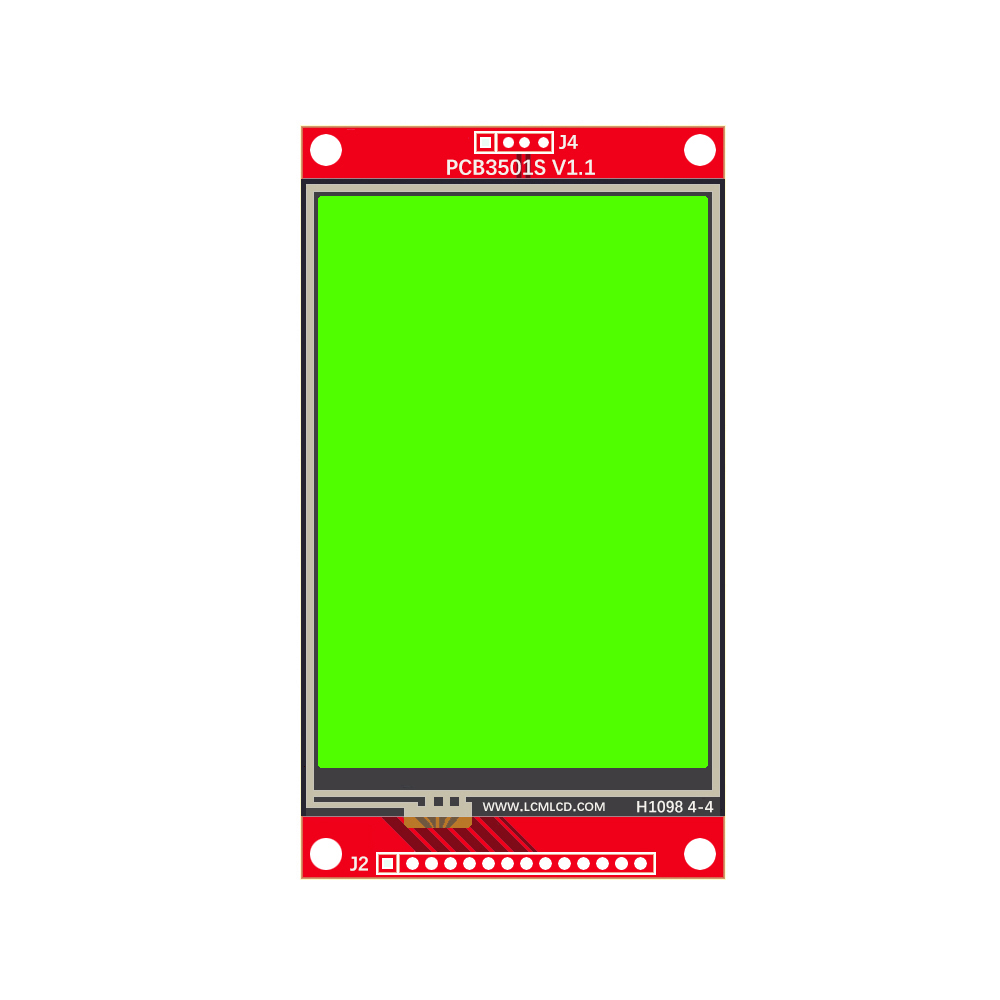

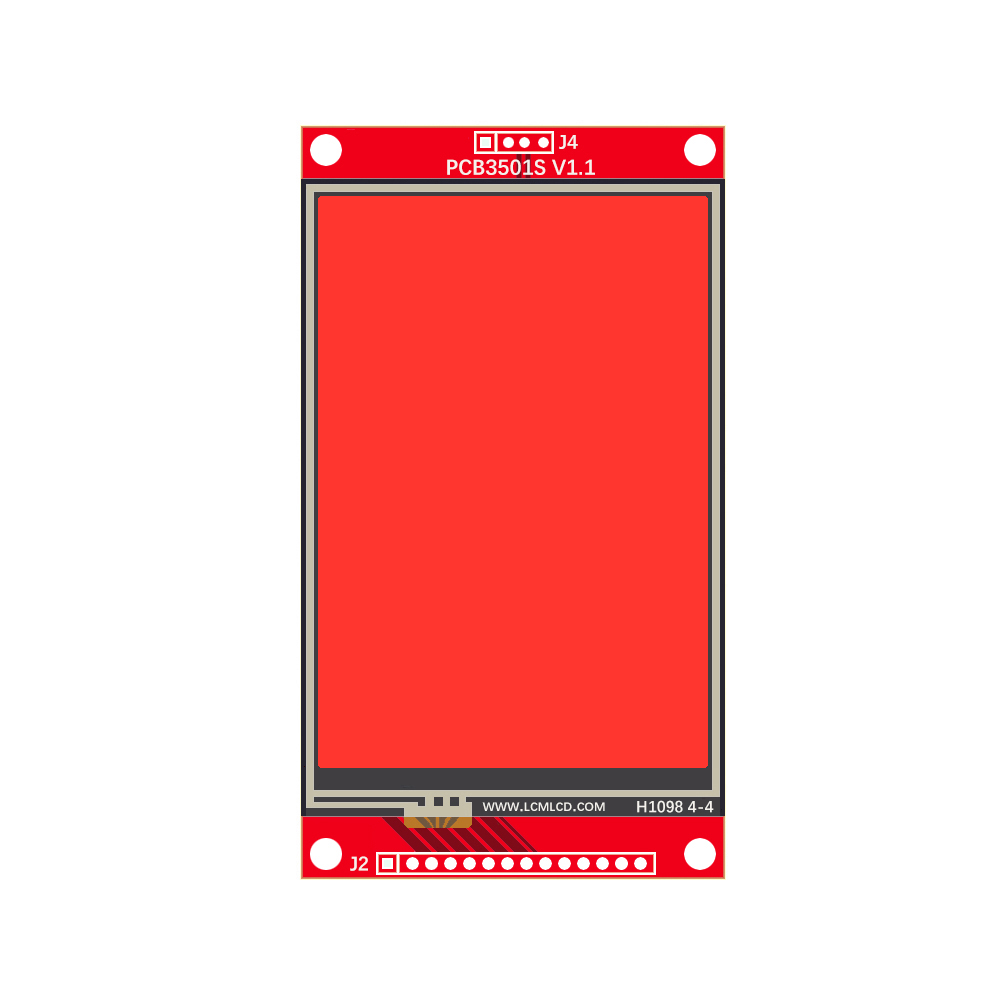

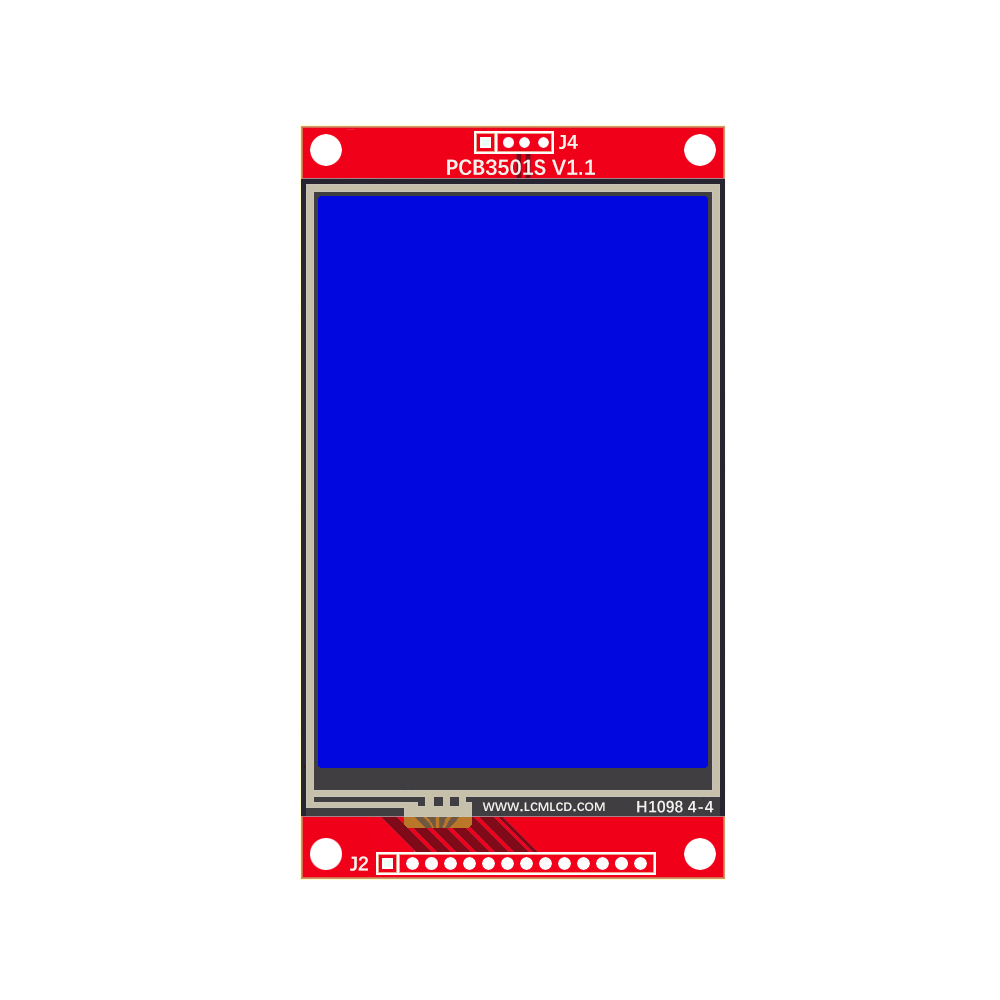

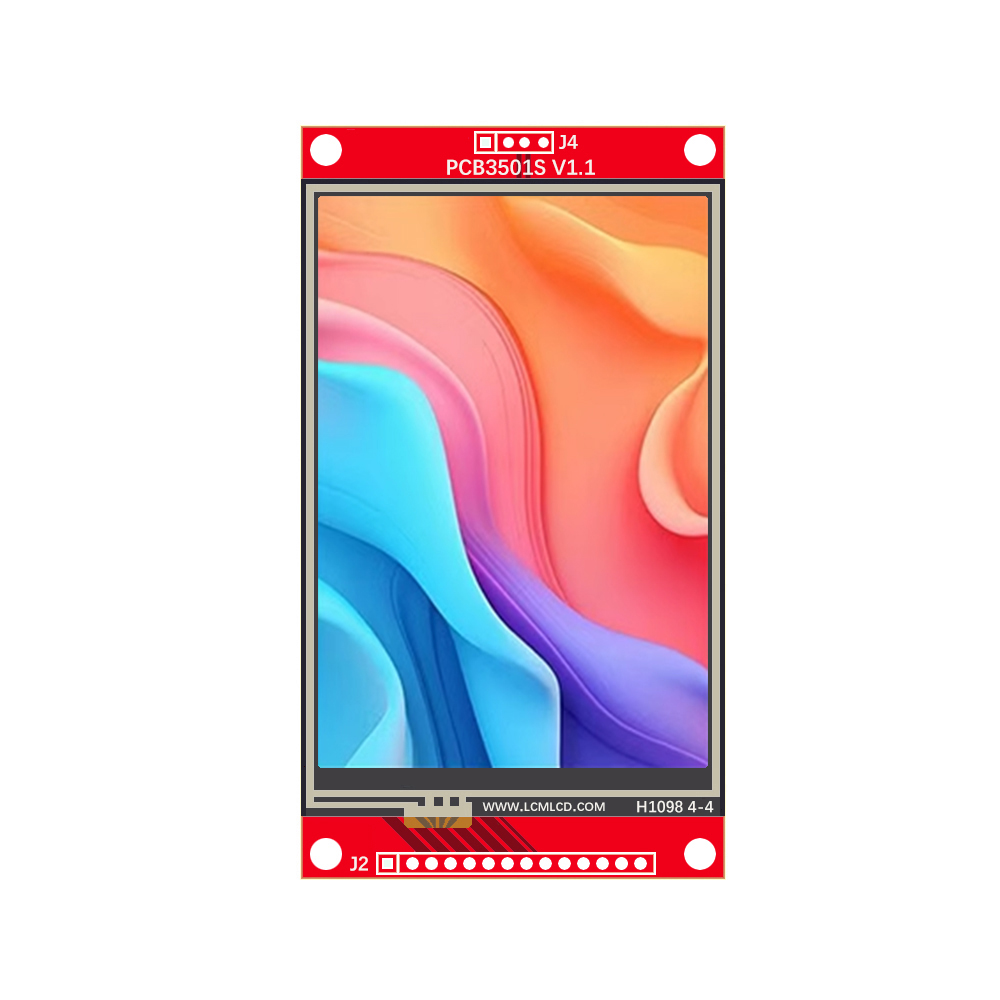

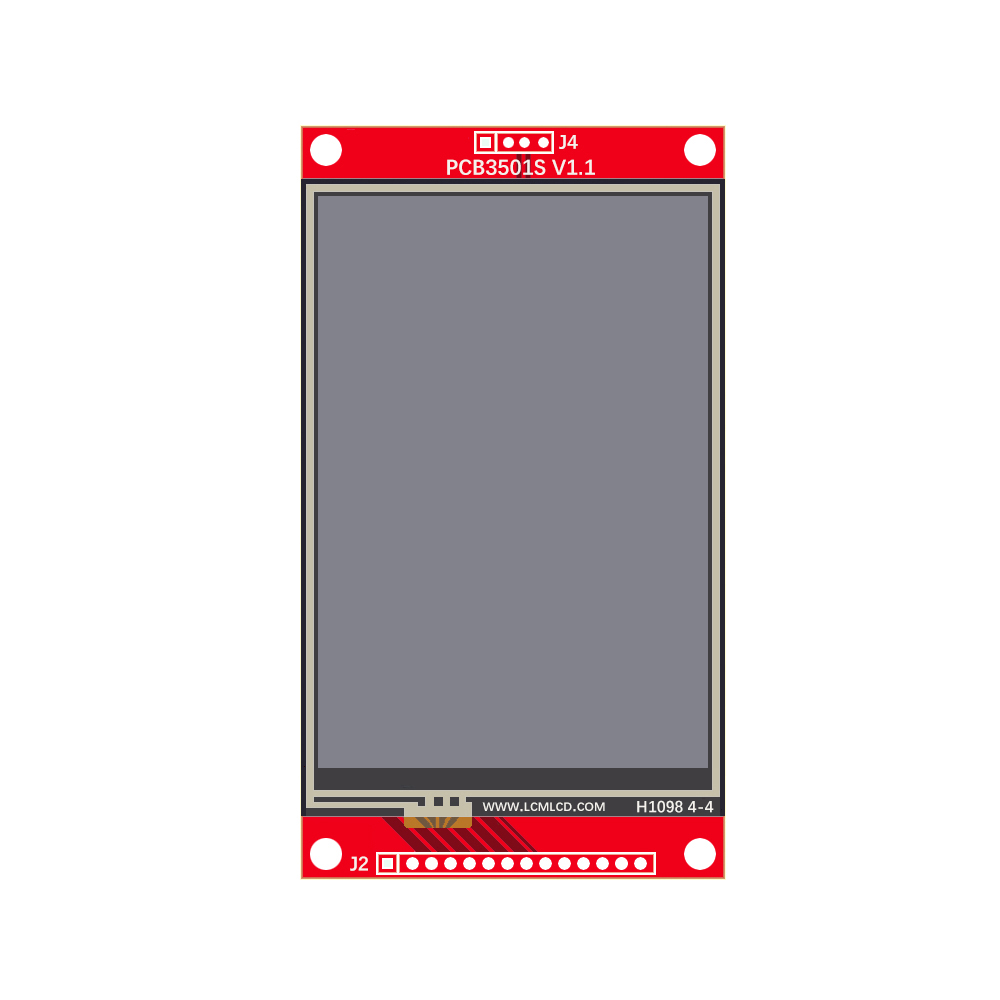

SYC320RGB480V13-3.5(RTP)
SYC320RGB480V13-3.5(RTP) SYC320RGB480V13-3.5(RTP)
SYC320RGB480V13-3.5(RTP) SYC320RGB480V13-3.5(RTP)
SYC320RGB480V13-3.5(RTP) SYC320RGB480V13-3.5(RTP)
SYC320RGB480V13-3.5(RTP) SYC320RGB480V13-3.5(RTP)
SYC320RGB480V13-3.5(RTP) SYC320RGB480V13-3.5(RTP)
SYC320RGB480V13-3.5(RTP) SYC320RGB480V13-3.5(RTP)

loading

SYC320RGB480V13-3.5(RTP)

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
Availability:
Quantity:
Inquire Add to Basket

Product Model

SYC320RGB480V13-3.5(RTP)

Optimum Resolution

320*480

Display Color

RGB 65K Color

Outline Dimensions

56.34*98.00mm

Active Area

48.96*73.44mm

Interface Type

4 Wire SPI

Driver IC

ILI9488

Touch Panel

Resistive

Operating Voltage

3.3V/5V

Operating Temp

-20°c~+70°c

Storage Temp

-30°c~+80°c

Number of Pins

14 pin


Previous:
Next:
LCD Display LCD Module LCD Screen TFT Display SPI TFT SPI TFT Display 320x480 TFT 3.5 inch tft display
